Place of Origin: | CHINA |
Brand Name: | GL |
Certification: | CE |
Model Number: | GLP10--GLP100 |
Minimum Order Quantity: | 1Set |
---|---|
Packaging Details: | Carton |
Delivery Time: | 7Days |
Payment Terms: | T/T |
Supply Ability: | 500sets/week |
Dimension: | Diameter 105mm / Height 165mm | Installing Holes Position: | 112mm * 112mm By 4 M4 Screws |
---|---|---|---|
Charging: | USB /5V | Trigger Mode: | Flight Control / RC Receiver / Built-in System |
Weight: | 400g | Battery Capacity: | 500mAh |
Standby Time: | 6Hours | Input: | PWM /USB |

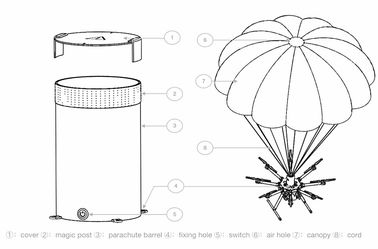

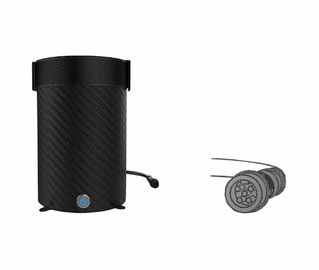

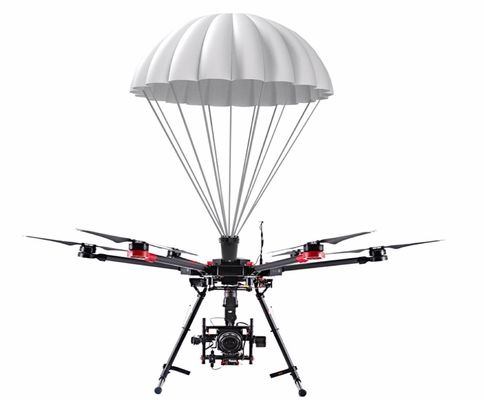

Smart drone parachute is UAV intelligent emergency parachute system, with built-in sensors, battery cells and control unit can operate independently or can be used in conjunction with unmanned aerial vehicle flight control system. The equipment can communicate with UAV flight control system in both directions and receive and feedback system status in real time. The parachute landing system detects the flying state of the unmanned aerial vehicle 100 times per second. When it detects that the unmanned aerial vehicle is out of control, it ejects the parachute at the first time to help the unmanned aerial vehicle safely slow down. It can record 100 sets of data and has the function of black box.
Specification
GLP10-10KG | GLP20-20KG | GLP30-30KG | GLP40-40KG | GLP50-50KG | |
Installation size(mm) | 82*82 | 116*116 | 116*116 | 116*116 | 145*145 |
Equipment size(mm) | Φ104/H100 | Φ104/H150 | Φ104/H165 | Φ104/H180 | Φ104/H210 |
Max Load | 10KG | 20KG | 30KG | 40KG | 50KG |
Interface | 5 PIN | 5 PIN | 5 PIN | 5 PIN | 5 PIN |
Parachute diameter | 2000mm | 3000mm | 3500mm | 4000mm | 4400mm |
Supply voltage | 5V | 5V | 5V | 5V | 5V |
Cell capacity | 380mAh | 380mAh | 380mAh | 380mAh | 380mAh |
Gesture perception range | ±90° | ±90° | ±90° | ±90° | ±90° |
Trigger angle | ±80° | ±80° | ±80° | ±80° | ±80° |
Fall trigger | 0.5g/1.6s | 0.5g/1.6s | 0.5g/1.6s | 0.5g/1.6s | 0.5g/1.6s |
operating hours | 8h | 8h | 8h | 8h | 8h |
Trigger method | Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
data communication | TTL | TTL | TTL | TTL | TTL |
PWM pulse width | 1750-2000 | 1750-2000 | 1750-2000 | 1750-2000 | 1750-2000 |
Power off | 10s | 10s | 10s | 10s | 10s |
Wake up | Yes | Yes | Yes | Yes | Yes |
Ejection method | Propellant | Propellant | Propellant | Propellant | Propellant |
Umbrella rope fixing method | Built-in | External transfer | External transfer | External transfer | External transfer |
Weight | 380g | 550g | 650g | 780g | 850g |
Refresh rate | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz |
Minimum open umbrella height | 20m | 30m | 36m | 40m | 50m |
Operating temperature | *-10℃—-45℃ | *-10℃—-45℃ | *-10℃—-45℃ | *-10℃—-45℃ | *-10℃—-45℃ |
GLP60-60KG | GLP70-70KG | GLP80-80KG | GLP90-90KG | GLP100-100KG | |
Installation size(mm) | 145*145 | 145*145 | 145*145 | 145*145 | 200*200 |
Equipment size(mm) | Φ130/H185 | Φ130/H200 | Φ130/H230 | Φ130/H240 | Φ180/H240 |
Max Load | 60KG | 70KG | 80KG | 90KG | 100KG |
Interface | 5 PIN | 5 PIN | 5 PIN | 5 PIN | 5 PIN |
Parachute diameter | 4500mm | 5000mm | 5200mm | 5500mm | 6500mm |
Supply voltage | 5V | 5V | 5V | 5V | 5V |
Cell capacity | 650mAh | 650mAh | 650mAh | 650mAh | 650mAh |
Gesture perception range | ±90° | ±90° | ±90° | ±90° | ±90° |
Trigger angle | ±80° | ±80° | ±80° | ±80° | ±80° |
Fall trigger | 0.5g/1.6s | 0.5g/1.6s | 0.5g/1.6s | 0.5g/1.6s | 0.5g/1.6s |
operating hours | 12h | 12h | 12h | 12h | 12h |
Trigger method | Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
Attitude / fall / digital serial port |
data communication | TTL | TTL | TTL | TTL | TTL |
PWM pulse width | 1750-2000 | 1750-2000 | 1750-2000 | 1750-2000 | 1750-2000 |
Power off | 10s | 10s | 10s | 10s | 10s |
Wake up | Yes | Yes | Yes | Yes | Yes |
Ejection method | Propellant | Propellant | Propellant | Propellant | Propellant |
Umbrella rope fixing method | External transfer | External transfer | External transfer | External transfer | External transfer |
Weight | 950g | 1250g | 1450g | 2000g | 2200g |
Refresh rate | 100Hz | 100Hz | 100Hz | 100Hz | 100Hz |
Minimum open umbrella height | 65m | 75m | 80m | 85m | 85m |
Operating temperature | *-10℃—-45℃ | *-10℃—-45℃ | *-10℃—-45℃ | *-10℃—-45℃ | *-10℃—-45℃ |
VIDEO LINK: https://youtu.be/2-1Llk2aYBI
